產品規格

性能參數

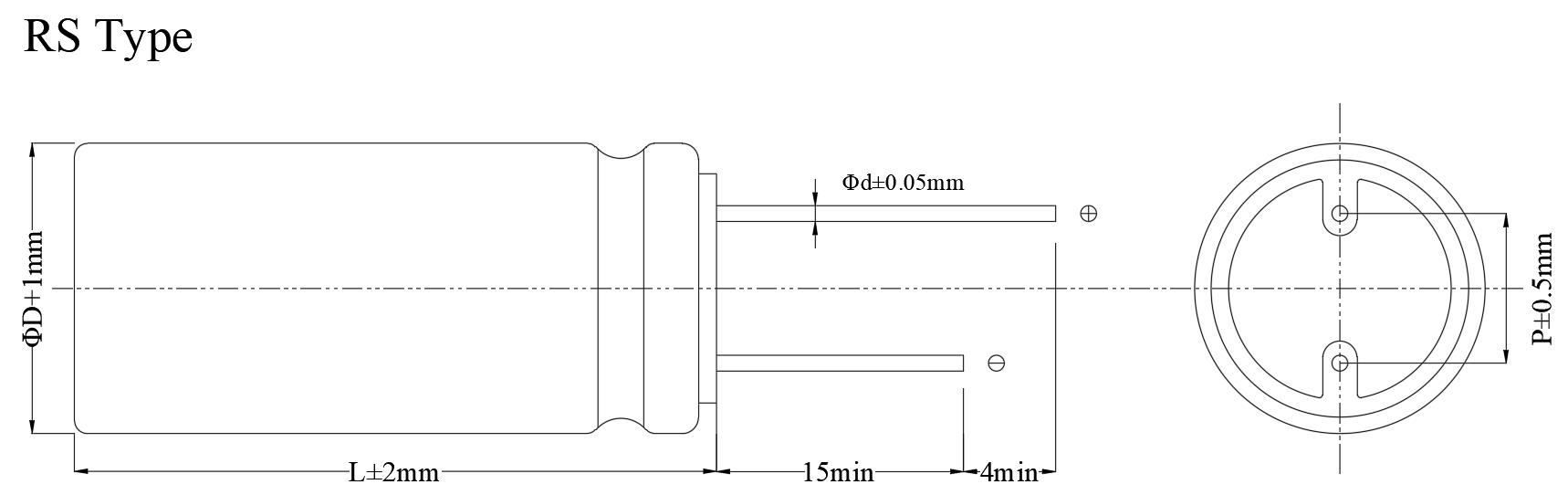

外型圖

應用領域

U_R/Cap(uF)	Dimensions (mm)		Leakage Current (uA)	ESR(mΩ ) 20℃,100kHz~300kHz	Ripple Current (mArms ) 105℃,100kHz	Part No.
U_R/Cap(uF)	ΦD	L	Leakage Current (uA)	ESR(mΩ ) 20℃,100kHz~300kHz	Ripple Current (mArms ) 105℃,100kHz	Part No.
10V47uF	6.3*9		500	25	2900	MPT1A476MRS6C09□
10V47uF	6.3*11		500	25	2900	MPT1A476MRS6C11□
10V68uF	6.3*9		500	25	2900	MPT1A686MRS6C09□
10V100uF	5*8		500	45	2820	MPT1A107MRS0508□
10V100uF	5*11		500	30	2820	MPT1A107MRS0511□
10V100uF	6.3*9		500	25	2820	MPT1A107MRS6C09□
10V220uF	5*11		500	30	2820	MPT1A227MRS0511□
10V220uF	6.3*9		500	30	2700	MPT1A227MRS6C09□
10V220uF	6.3*11		500	15	3200	MPT1A227MRS6C11□
10V220uF	8*9		500	12	3200	MPT1A227MRS0809□
10V270uF	6.3*9		640	25	4420	MPT1A277MRS6C09□
10V330uF	6.3*9		660	25	2820	MPT1A337MRS6C09□
10V330uF	6.3*11		660	20	2820	MPT1A337MRS6C11□
10V330uF	8*9		660	11	5000	MPT1A337MRS0809□
10V330uF	8*11		660	11	5080	MPT1A337MRS0811□
10V390uF	8*11		780	9	5080	MPT1A397MRS0811□
10V470uF	6.3*11		940	20	3160	MPT1A477MRS6C11□
10V470uF	8*9		940	11	3900	MPT1A477MRS0809□
10V470uF	8*11		940	11	3900	MPT1A477MRS0811□
10V470uF	10*12		940	10	6100	MPT1A477MRS1012□
10V560uF	6.3*11		1120	15	3160	MPT1A567MRS6C11□
10V560uF	8*9		1120	10	5600	MPT1A567MRS0809□
10V560uF	8*11		1120	10	6100	MPT1A567MRS0811□
10V560uF	10*10		1120	10	5600	MPT1A567MRS1010□
10V560uF	10*12		1120	10	6100	MPT1A567MRS1012□
10V680uF	6.3*11		1360	15	3900	MPT1A687MRS6C11□
10V680uF	8*11		1360	12	3900	MPT1A687MRS0811□
10V680uF	10*10		1360	12	6100	MPT1A687MRS1010□
10V680uF	10*12		1360	10	6100	MPT1A687MRS1012□
10V820uF	8*11		1640	12	3900	MPT1A827MRS0811□
10V1000uF	8*11		2000	12	3900	MPT1A108MRS0811□
10V1000uF	10*12		2000	10	6100	MPT1A108MRS1012□
10V1200uF	8*11		2400	12	3900	MPT1A128MRS0811□
10V1200uF	10*12		2400	10	6100	MPT1A128MRS1012□
10V1500uF	10*12		3000	10	6100	MPT1A158MRS1012□

U_R/Cap(uF)	Dimensions (mm)		Leakage Current (uA)	ESR(mΩ ) 20℃,100kHz~300kHz	Ripple Current (mArms ) 105℃,100kHz	Part No.
U_R/Cap(uF)	ΦD	L	Leakage Current (uA)	ESR(mΩ ) 20℃,100kHz~300kHz	Ripple Current (mArms ) 105℃,100kHz	Part No.
16V10uF	6.3*6		500	40	1810	MPT1C106MRS6C06□
16V47uF	5*7		500	40	1810	MPT1C476MRS0507□
16V47uF	6.3*6		500	40	1810	MPT1C476MRS6C06□
16V47uF	6.3*9		500	25	2820	MPT1C476MRS6C09□
16V82uF	5*8		500	40	1810	MPT1C826MRS0508□
16V100uF	5*11		500	30	2490	MPT1C107MRS0511□
16V100uF	6.3*6		500	24	2490	MPT1C107MRS6C06□
16V100uF	6.3*9		500	24	2820	MPT1C107MRS6C09□
16V100uF	6.3*11		500	24	2820	MPT1C107MRS6C11□
16V120uF	6.3*9		500	24	2820	MPT1C127MRS6C09□
16V150uF	6.3*6		500	25	2820	MPT1C157MRS6C06□
16V150uF	6.3*9		500	25	2820	MPT1C157MRS6C09□
16V180uF	6.3*9		576	16	2820	MPT1C187MRS6C09□
16V180uF	6.3*11		576	16	2820	MPT1C187MRS6C11□
16V220uF	6.3*9		704	20	2820	MPT1C227MRS6C09□
16V220uF	6.3*11		704	20	2820	MPT1C227MRS6C11□
16V220uF	8*9		704	14	3300	MPT1C227MRS0809□
16V220uF	8*11		704	15	3300	MPT1C227MRS0811□
16V270uF	6.3*11		864	20	3160	MPT1C277MRS6C11□
16V270uF	8*9		864	11	5080	MPT1C277MRS0809□
16V270uF	8*11		864	11	5080	MPT1C277MRS0811□
16V270uF	10*10		864	11	5080	MPT1C277MRS1010□
16V330uF	6.3*11		1056	25	2820	MPT1C337MRS6C11□
16V330uF	8*9		1056	13	4700	MPT1C337MRS0809□
16V330uF	8*11		1056	11	4700	MPT1C337MRS0811□
16V330uF	10*10		1056	16	4720	MPT1C337MRS1010□
16V330uF	10*12		1056	16	4720	MPT1C337MRS1012□
16V470uF	8*9		1504	16	3300	MPT1C477MRS0809□
16V470uF	8*11		1504	11	5060	MPT1C477MRS0811□
16V470uF	10*10		1504	10	6100	MPT1C477MRS1010□
16V470uF	10*12		1504	10	6100	MPT1C477MRS1012□
16V560uF	10*10		1792	10	6100	MPT1C567MRS1010□
16V560uF	10*12		1792	10	6100	MPT1C567MRS1012□
16V680uF	10*12		2176	10	6100	MPT1C687MRS1012□
16V820uF	10*12		2624	10	6100	MPT1C827MRS1012□

U_R/Cap(uF)	Dimensions (mm)		Leakage Current (uA)	ESR(mΩ ) 20℃,100kHz~300kHz	Ripple Current (mArms ) 105℃,100kHz	Part No.
U_R/Cap(uF)	ΦD	L	Leakage Current (uA)	ESR(mΩ ) 20℃,100kHz~300kHz	Ripple Current (mArms ) 105℃,100kHz	Part No.
16V1000uF	10*12		3200	10	6100	MPT1C108MRS1012□
16V1200uF	10*12		3840	10	6100	MPT1C128MRS1012□
20V33uF	6.3*7		500	50	2000	MPT1D336MRS6C07□
20V100uF	8*11		500	20	2750	MPT1D107MRS0811□
20V120uF	6.3*11		500	24	2000	MPT1D127MRS6C11□
20V150uF	10*12		600	30	2620	MPT1D157MRS1012□
20V180uF	8*11		720	24	2750	MPT1D187MRS0811□
20V180uF	10*12		720	20	2820	MPT1D187MRS1012□
20V360uF	8*11		1440	40	2750	MPT1D367MRS0811□
25V22uF	8*9		500	32	1300	MPT1E226MRS0809□
25V33uF	8*9		500	30	2050	MPT1E336MRS0809□
25V47uF	8*9		500	30	2100	MPT1E476MRS0809□
25V56uF	8*9		500	30	2150	MPT1E566MRS0809□
25V68uF	8*9		500	30	2150	MPT1E686MRS0809□
25V100uF	6.3*11		500	25	2150	MPT1E107MRS6C11□
25V100uF	8*9		500	25	2150	MPT1E107MRS0809□
25V100uF	8*11		500	20	2750	MPT1E107MRS0811□
25V100uF	10*12		500	20	2750	MPT1E107MRS1012□
25V120uF	8*9		600	30	2750	MPT1E127MRS0809□
25V120uF	8*11		600	24	2750	MPT1E127MRS0811□
25V150uF	8*11		900	20	2750	MPT1E157MRS0811□
25V180uF	8*11		1100	20	2750	MPT1E187MRS0811□
25V220uF	8*11		1100	20	2750	MPT1E227MRS0811□
25V220uF	10*12		1100	20	2750	MPT1E227MRS1012□
25V270uF	8*11		1350	20	2750	MPT1E277MRS0811□
25V330uF	8*12		1650	20	2700	MPT1E337MRS0812□
25V330uF	10*12		1650	20	2700	MPT1E337MRS1012□
25V360uF	8*12		1800	40	2220	MPT1E367MRS0812□
25V470uF	10*12		2350	20	2700	MPT1E477MRS1012□
35V10uF	6.3*6		500	70	1300	MPT1V106MRS6C06□
35V10uF	6.3*9		500	50	1300	MPT1V106MRS6C09□
35V15uF	6.3*6		500	60	1300	MPT1V156MRS6C06□
35V15uF	6.3*9		500	50	1800	MPT1V156MRS6C09□
35V18uF	5*7		500	50	1100	MPT1V186MRS0507□
35V22uF	5*7		500	50	1100	MPT1V226MRS0507□

U_R/Cap(uF)	Dimensions (mm)		Leakage Current (uA)	ESR(mΩ ) 20℃,100kHz~300kHz	Ripple Current (mArms ) 105℃,100kHz	Part No.
U_R/Cap(uF)	ΦD	L	Leakage Current (uA)	ESR(mΩ ) 20℃,100kHz~300kHz	Ripple Current (mArms ) 105℃,100kHz	Part No.
35V22uF	6.3*6		500	45	1300	MPT1V226MRS6C06□
35V33uF	6.3*7		500	50	1300	MPT1V336MRS6C07□
35V35uF	6.3*7		500	45	1300	MPT1V356MRS6C07□
35V47uF	6.3*9		500	50	1800	MPT1V476MRS6C09□
35V47uF	8*9		500	40	1800	MPT1V476MRS0809□
35V56uF	8*11		500	40	1800	MPT1V566MRS0811□
35V100uF	6.3*11		700	50	1800	MPT1V107MRS6C11□
35V100uF	10*12		700	40	2000	MPT1V107MRS1012□
35V120uF	8*11		840	50	1800	MPT1V127MRS0811□
35V150uF	10*12		1050	40	2000	MPT1V157MRS1012□
35V220uF	10*12		1540	50	2500	MPT1V227MRS1012□
35V270uF	10*12		1890	50	2500	MPT1V277MRS1012□
35V330uF	10*12		2310	50	2500	MPT1V337MRS1012□
35V470uF	10*12		3290	40	2500	MPT1V477MRS1012□

Items 項目	Characteristics 性能要求
Operating Temp 工作溫度范圍	-55℃~+125℃
Rated Voltage Range 額定電壓范圍	10V.DC～35V.DC
Nominal Cap.Range 容量范圍	10～1500uF
Capacitance Tolerance 容量偏差	±20%（120Hz,+20℃）
Leakage Current 漏電流(Max)	I=0.2CV or 500uA, whichever is greater. After 2 minutes whichever is greater measured with rated Working Voltage at 20℃
DF (Max) Tanδ (20℃,120Hz)	Rated Voltage(V)	10	16	25	35
	Tanδ	0.12
ESR(100K~300KHz, 20℃)	Value in Characteristics table
Temperature Characteristic 溫度特性(IR at 100KHz)	Z(+105℃)/ Z(+20℃)≤1.25 Z( -55℃ )/ Z(+20℃)≤1.25
Load Life 負載壽命	After applying rated voltage with Max ripple current for 2000hrs at 125℃,the capacitors shall meet the following requirements Capacitance ChangeWithin ±2% of the initial valueDissipation FactorNot more than150% of the specified valueESRNot more than150% of the specified valueLeakage Current Not more than the specified value
Humidity Test 濕熱測試	After subjecting 90 to 95% RH for 2000hours at 60℃,no voltage, The capacitors shall meet The requirement as Endurance
Surge Test 浪涌測試	After subjecting to 1000 cycles each consisting of charge with the Surge Voltage specified at Normal temperature for 30 seconds through a protective resistor and discharge for 5 minutes 30 seconds, the capacitors shall meet the following requirements. Capacitance ChangeWithin ±20% of the initial valueDissipation FactorNot more than150% of the specified valueESRNot more than150% of the specified valueLeakage Current Not more than the specified value
